BCI Gated Comparator

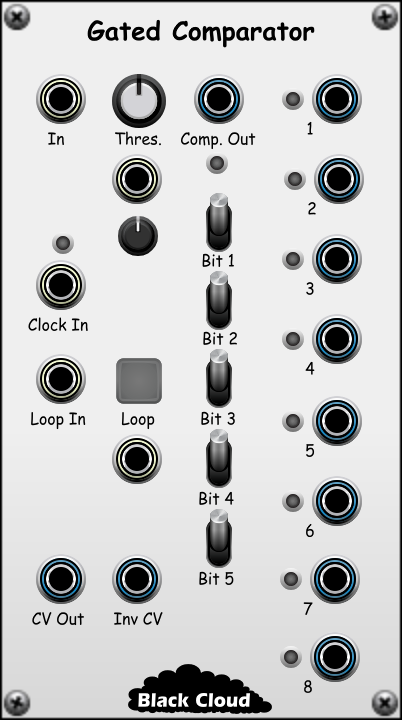

Gated Comparator is a gate sequencer that combines the functions of a comparator with a shift register. It also generates pseudo-random CV sequences that can be used for note patterns or other

An adjustable voltage comparator monitors the In input and generates a positive gate signal on Comp. Out whenever the input signal meets or exceeds the threshold set via the Thres.
knob and CV Input/Attenuverter combination.

An 8 stage Shift Register is driven by the clock pulses received at the Clock In jack, with the Comparator result when being added as a new value at the first stage.

A PDF format “Quick Reference Guide” is available here: Gated Comparator Instructions
